Cloud9 100cm Wall Mounted Acoustic Panel

Cloud9 100cm Wall Mounted Designer Acoustic Panel | 1000mm diameter | NRC 0.75 | Class C

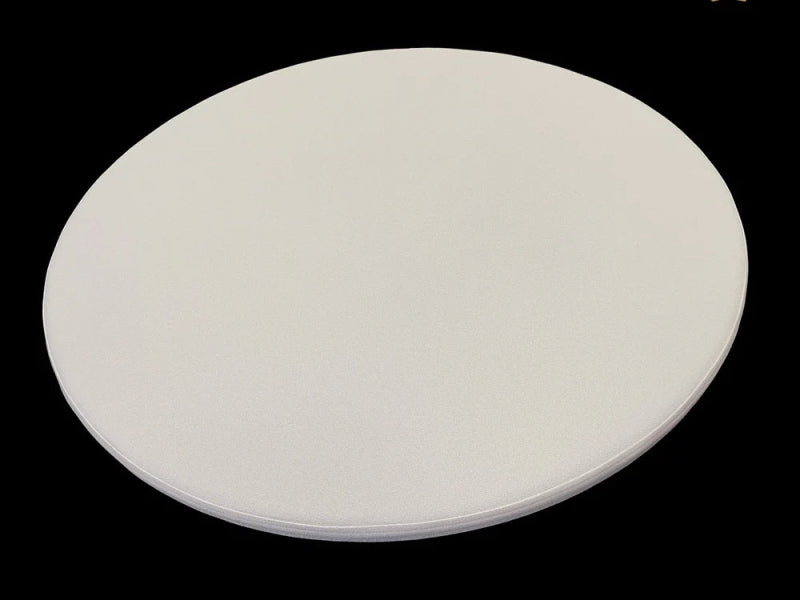

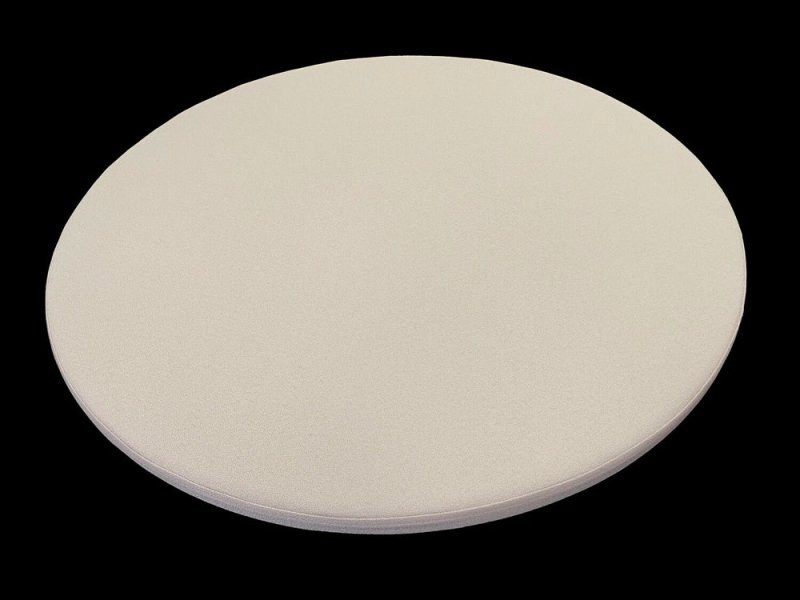

The Advanced Acoustics Cloud9 100cm Wall Mounted Designer Acoustic Panel is a large-format circular acoustic panel from the Advanced Acoustics Designer Range. The circular format provides a soft, organic contrast to rectangular wall surfaces and rectilinear interior schemes, and the 100cm diameter makes it the most visually impactful format in the Cloud9 range. The panel consists of a 25mm open-cell acoustic foam core mounted on a rigid 6mm MDF backing board, wrapped in a 100% recycled open-weave polyester cloth available in 31 colours.

The Cloud9 100cm has a diameter of 1000mm, providing 0.78m² of absorption per panel — the largest coverage of any Cloud9 format. The large circular format is suited to feature wall installations, open-plan environments, and hospitality spaces where a bold visual statement is required alongside effective acoustic absorption. The 25mm foam core achieves NRC 0.75 (Sound Absorption Class C), providing effective absorption of mid and high frequencies appropriate for controlling speech-frequency reverberation in office and commercial environments.

Applications

• Large-format feature wall installations. The 100cm diameter makes this the statement format in the Cloud9 range. A single panel creates an immediate focal point on a wall surface; a composed arrangement of multiple 100cm panels, or a mixed-size cluster combining 100cm, 80cm, and 60cm formats, creates a large-scale acoustic feature wall with significant visual impact and meaningful absorption coverage.
• Open-plan offices — reverberation and echo control. Install on walls to reduce reverberation time and improve speech intelligibility. The 100cm Cloud9 provides 0.78m² of absorption per panel, making it the most efficient Cloud9 format for achieving target coverage areas with fewer panels and fixing points. The circular format integrates naturally into contemporary office interiors.
• Meeting rooms and boardrooms. The 100cm format is suited to larger meeting rooms and boardrooms where a single large panel or small arrangement can provide the required absorption coverage. The bold circular profile creates a distinctive wall feature that complements premium interior specifications.

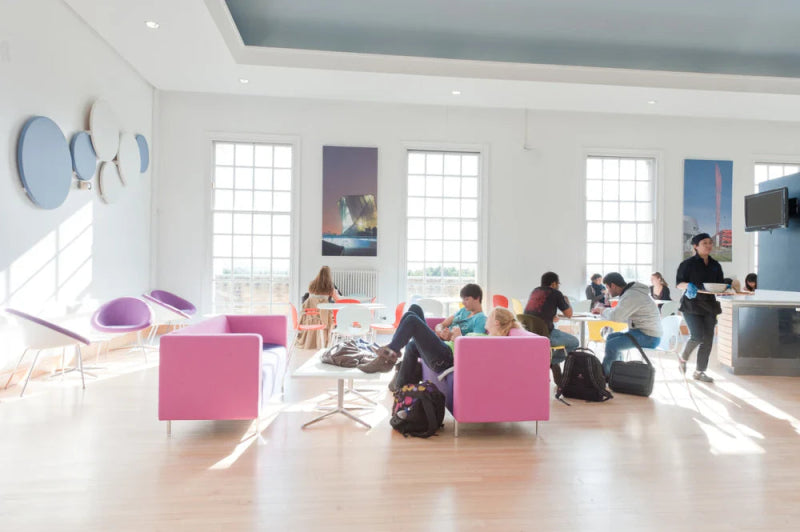

• Hospitality and commercial interiors. The Cloud9 100cm's large circular format and soft profile make it particularly suited to hospitality environments — restaurants, bars, hotel lobbies, and reception areas — where acoustic treatment is required alongside a premium interior finish. The 1000mm diameter creates a bold visual presence that works as both an acoustic and decorative element.

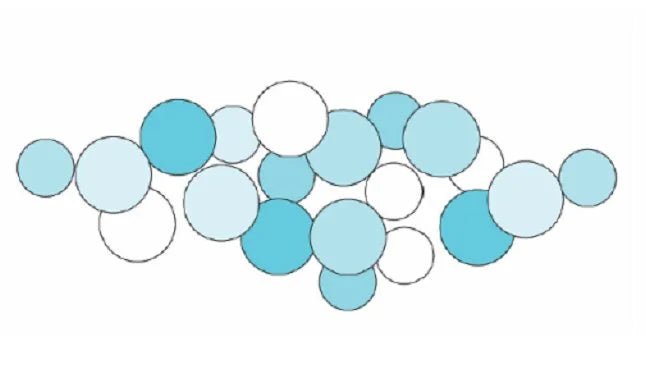

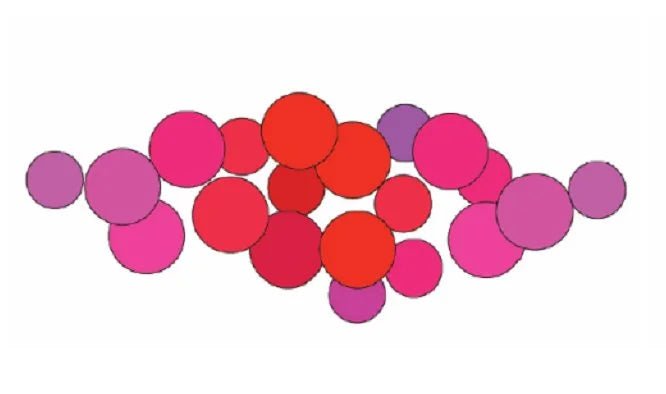

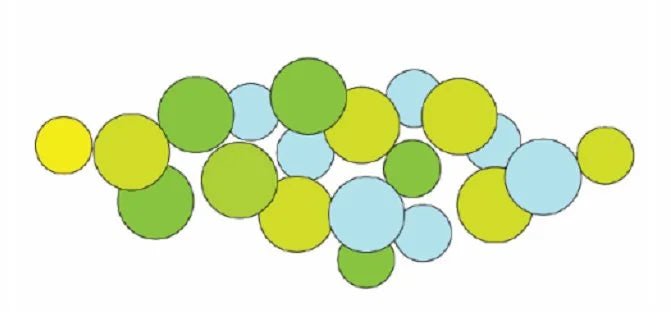

• Mixed-size Cloud9 cluster arrangements. The 100cm panel anchors large mixed-size Cloud9 clusters, with 80cm and 60cm panels arranged around and between the larger format to create organic, asymmetric compositions. The scale variation between the three Cloud9 sizes creates visual depth and movement across the wall surface.

Product Benefits

• NRC 0.75 — effective mid and high frequency absorption. The 25mm foam core achieves NRC 0.75 (Sound Absorption Class C), with strong absorption from 500Hz upward: 0.65 at 500Hz, 0.94 at 1000Hz, 1.13 at 2000Hz, and 0.99 at 4000Hz. This frequency profile makes the Cloud9 effective for controlling speech-frequency reverberation in office and commercial environments. Low-frequency absorption is more limited (0.30 at 250Hz).
• Class '0' fire-rated construction — compliant for commercial use. The acoustic foam core is Class '0' rated to BS 476 Parts 6 and 7, and C s1, d0 to EN 13501-1, meeting commercial fire safety requirements for wall-mounted acoustic treatment in offices, schools, and public buildings.

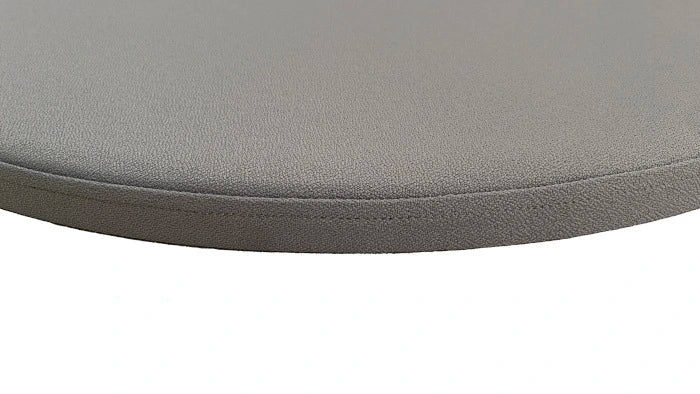

• 100% recycled open-weave polyester cloth — 31 colour options. The open-weave polyester cloth is produced from 100% recycled fibre, maintaining full acoustic transparency while providing a durable, abrasion-resistant surface finish. Available in 31 colours — download the swatch card for the full range.
• Mirror plate fixing — discreet and secure. Supplied with mirror plate fixing hardware for a flush, secure wall mount. The discreet fixing method keeps the panel face clean and uninterrupted, maintaining the visual integrity of the circular profile.
• 100cm diameter — largest Cloud9 format, maximum coverage and visual impact. At 1000mm diameter and 0.78m² per panel, the 100cm is the largest and most impactful format in the Cloud9 range, providing the greatest absorption coverage per fixing point and the strongest visual presence of any Cloud9 panel.
• Handmade in the UK — consistent quality across every panel. All Designer Range panels are handmade in the Advanced Acoustics UK facility using consistent materials and construction methods, ensuring uniform acoustic performance and finish quality across every panel in an installation.

Please note: All Designer Range panels are made to order with a 2–3 week lead time.

Installation

Mark the fixing position on the wall using the panel diameter as a guide. Ensure fixing positions are located on solid wall structure or appropriate noggins — do not fix into plasterboard alone without appropriate cavity fixings. Due to the panel size, two people are recommended for installation.

For mirror plate fixing: screw the mirror plate to the wall at the marked position using appropriate fixings for the wall construction, and hang the panel on the mirror plate. Check that the panel is level before finalising the fixing position.

For cluster arrangements combining multiple Cloud9 sizes, plan the composition on paper or digitally before marking fixing positions on the wall. Use a tape measure to set out the centre points of each panel accurately before drilling.

The Technical Details
