Rytons 9×9 Cowled Acoustic AirLiner Set with Hit & Miss Ventilator | Telescopic Cavity Liner | 12,700mm²

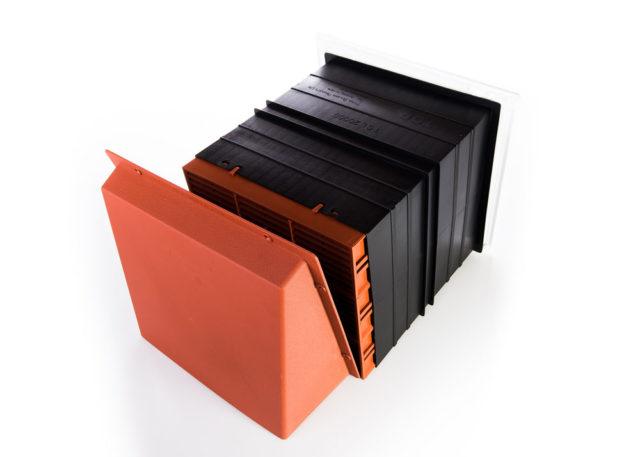

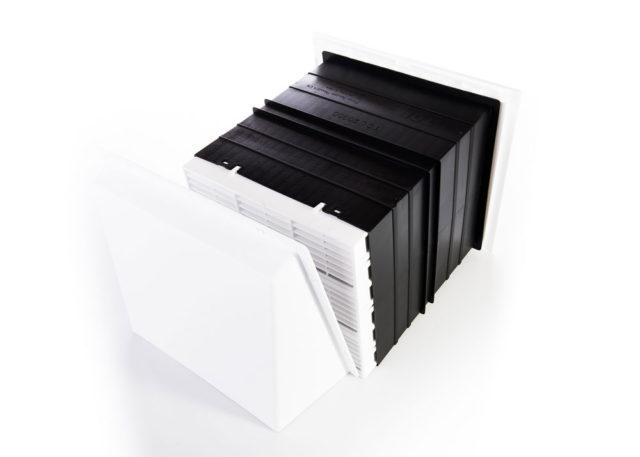

The Rytons 9×9 Cowled Acoustic AirLiner Set is the largest format cowled ventilator in the AirLiner range, combining the high equivalent area of the 9×9 with an external cowl for improved weather resistance. Acoustic performance is 40 dB open and 41 dB closed — marginally better than the standard 9×9 due to the cowl geometry — with an equivalent area of 12,700mm² (marginally less than the standard 9×9 at 12,800mm², reflecting the cowl’s effect on the airflow path). Manufactured from UV-stabilised high-impact polystyrene and polypropylene. Cowl dimensions: 274mm L × 235mm H × 103mm D. Sleeve: 220mm W × 207mm H, extending 250mm to 404mm. Internal grille: 271mm L × 247mm H. Available in Terracotta, Buff/Sand, and White.
Jump to: Applications · Product Benefits · Installation · Technical Details
Applications
- Maximum background ventilation with improved weather resistance — exposed locations. The cowled 9×9 is the appropriate specification for large rooms or open-plan spaces on exposed wall faces or prevailing wind elevations where the standard flat external grille would be subject to wind-driven rain ingress. The cowl projects 103mm from the wall face — the largest cowl projection in the AirLiner range. Confirm clearance from adjacent wall features before specifying.
- Replacement of existing non-acoustic ventilators in 9×9 openings. Fits standard 9×9 inch (229×229mm) ventilator brick openings.
- Hit & miss control — ventilation management. When closed, acoustic performance improves to 41 dB.
Product Benefits
- 40 dB open / 41 dB closed — BRE tested to BS EN 13141-1:2004. The cowl geometry improves open-position performance by 2 dB compared to the standard 9×9.
- External cowl — improved weather resistance. Cowl dimensions: 274mm L × 235mm H × 103mm D.
- 12,700mm² equivalent area.
- Telescopic sleeve — adjusts 250mm to 404mm.
- Hit & miss ventilator — occupant-controlled airflow.
- UV-stabilised high-impact polystyrene and polypropylene.
- Three colour options — Terracotta, Buff/Sand, White.
Installation
As the standard 9×9 AirLiner Set. The cowl is fitted to the external face of the sleeve in place of the flat external grille. Ensure the cowl projects clear of the wall face and that there is adequate clearance from adjacent wall features. The cowl opening should face downward to deflect rain — confirm correct orientation before fixing.
The Technical Details
| Product Name | Rytons 9×9 Cowled Acoustic AirLiner Set with Hit & Miss Ventilator |
| Acoustic Performance | 40 dB (open) / 41 dB (closed) |
| Equivalent Area | 12,700mm² |
| Testing Standard | BS EN 13141-1:2004 (BRE tested) |
| Cowl Dimensions | 274mm L × 235mm H × 103mm D |
| Sleeve Dimensions | 220mm W × 207mm H |
| Sleeve Length Range | 250mm to 404mm (telescopic) |
| Internal Grille | 271mm L × 247mm H |
| Material | UV-stabilised high-impact polystyrene and polypropylene |
| Colours | Terracotta, Buff/Sand, White |
| Ventilator Type | Hit & Miss |
A closer look
Rytons 9×9 Cowled Acoustic AirLiner Set with Hit & Miss Ventilator | Telescopic Cavity Liner | 12,700mm²The Rytons 9×9 Cowled Acoustic AirLiner Set is the largest format cowled ventilator in the AirLiner range, combining the high equivalent area of the 9×9 with an external cowl for improved weather resistance. Acoustic performance is 40 dB open and 41 dB closed — marginally better than the standard 9×9 due to the cowl geometry — with an equivalent area of 12,700mm² (marginally less than the standard 9×9 at 12,800mm², reflecting the cowl’s effect on the airflow path). Manufactured from UV-stabilised high-impact polystyrene and polypropylene. Cowl dimensions: 274mm L × 235mm H × 103mm D. Sleeve: 220mm W × 207mm H, extending 250mm to 404mm. Internal grille: 271mm L × 247mm H. Available in Terracotta, Buff/Sand, and White.Jump to: Applications · Product Benefits · Installation · Technical DetailsApplications Maximum background ventilation with improved weather resistance — exposed locations. The cowled 9×9 is the appropriate specification for large rooms or open-plan spaces on exposed wall faces or prevailing wind elevations where the standard flat external grille would be subject to wind-driven rain ingress.
The cowl projects 103mm from the wall face — the largest cowl projection in the AirLiner range. Confirm clearance from adjacent wall features before specifying. Replacement of existing non-acoustic ventilators in 9×9 openings. Fits standard 9×9 inch (229×229mm) ventilator brick openings. Hit & miss control — ventilation management. When closed, acoustic performance improves to 41 dB. Product Benefits 40 dB open / 41 dB closed — BRE tested to BS EN 13141-1:2004. The cowl geometry improves open-position performance by 2 dB compared to the standard 9×9. External cowl — improved weather resistance. Cowl dimensions: 274mm L × 235mm H × 103mm D. 12,700mm² equivalent area. Telescopic sleeve — adjusts 250mm to 404mm. Hit & miss ventilator — occupant-controlled airflow. UV-stabilised high-impact polystyrene and polypropylene. Three colour options — Terracotta, Buff/Sand, White. InstallationAs the standard 9×9 AirLiner Set. The cowl is fitted to the external face of the sleeve in place of the flat external grille. Ensure the cowl projects clear of the wall face and that there is adequate clearance from adjacent wall features. The cowl opening should face downward to deflect rain — confirm correct orientation before fixing.The Technical Details Product Name Rytons 9×9 Cowled Acoustic AirLiner Set with Hit & Miss Ventilator Acoustic Performance 40 dB (open) / 41 dB (closed) Equivalent Area 12,700mm² Testing Standard BS EN 13141-1:2004 (BRE tested) Cowl Dimensions 274mm L × 235mm H × 103mm D Sleeve Dimensions 220mm W × 207mm H Sleeve Length Range 250mm to 404mm (telescopic) Internal Grille 271mm L × 247mm H Material UV-stabilised high-impact polystyrene and polypropylene Colours Terracotta, Buff/Sand, White Ventilator Type Hit & Miss.
Product details
Specifications
| Brand | Advanced Acoustics |
|---|---|
| Product type | Acoustic Vent |
| Weight | 2.2 lb |
| Product code | TAL9HMCWLT |
