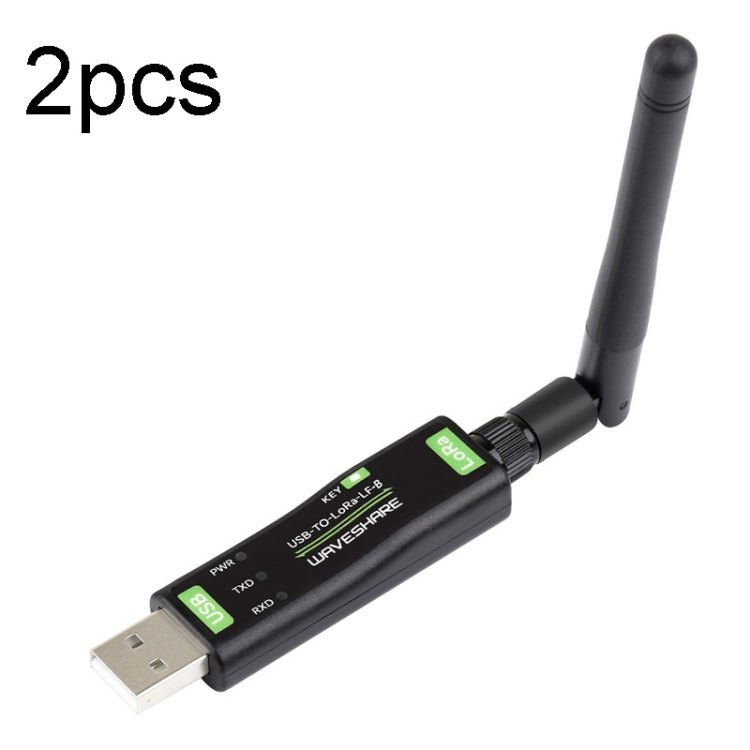

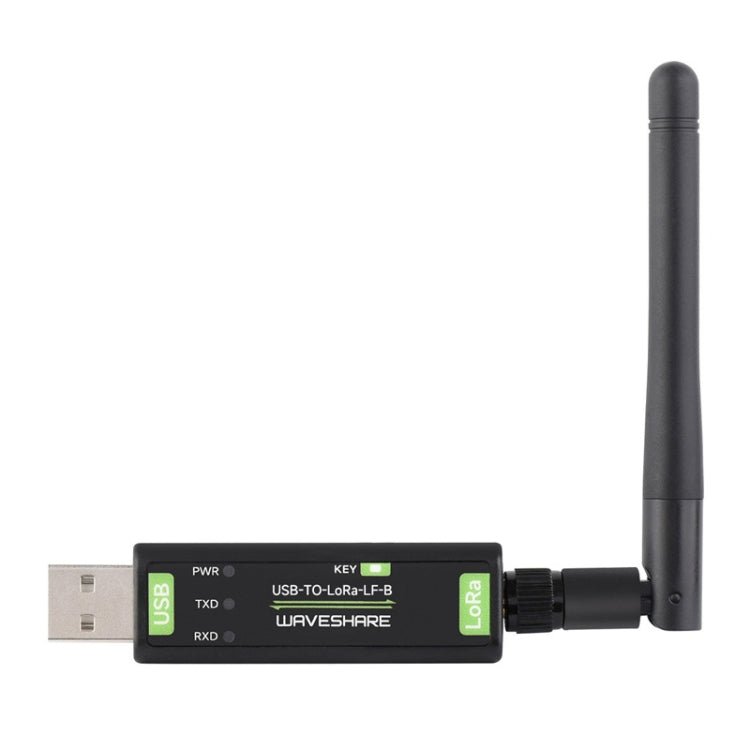

2pcs Waveshare 24514 USB To LoRa Data Transfer Module Based On SX1262 LF Version Using XTAL Crystal Oscillator
£41.93
1. This product is a wireless data transmission terminal based on the USB interface of the SX1262 solution. Using LoRa modulation and demodulation technology, it has the characteristics of strong anti-interference and long-distance communication, and the communication distance can reach 5KM. It supports point-to-point, point-to-multiple, relay networking, AES encryption and other communication methods. It is small in size and easy to install. It is suitable for standard or non-standard user protocol wireless data transmission and equipment control of industrial control.
2. Use SX1262 solution, with -148dBm receiving sensitivity and 22dBm transmitting power
3. Support preamble detection, with CRC, automatic subpacket, 960 byte cache function

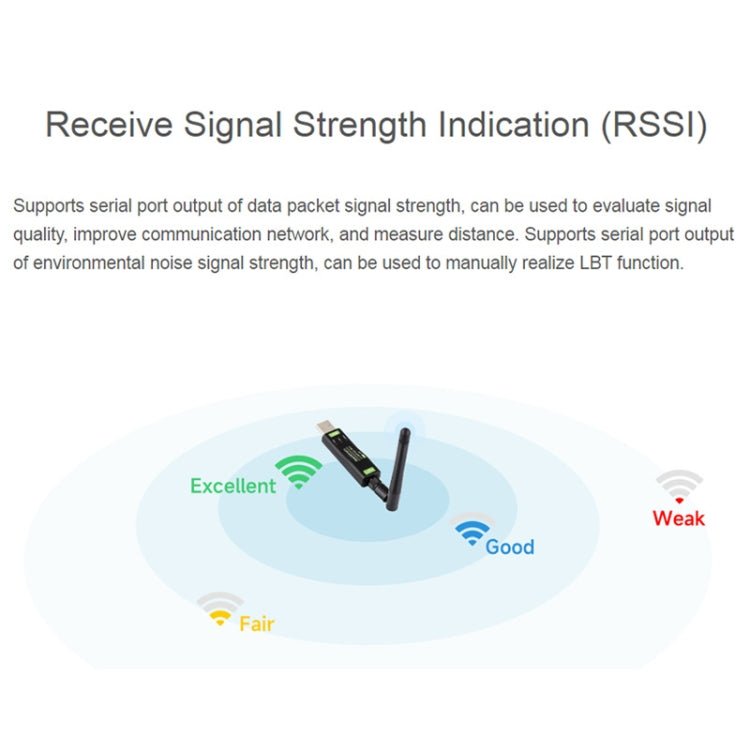

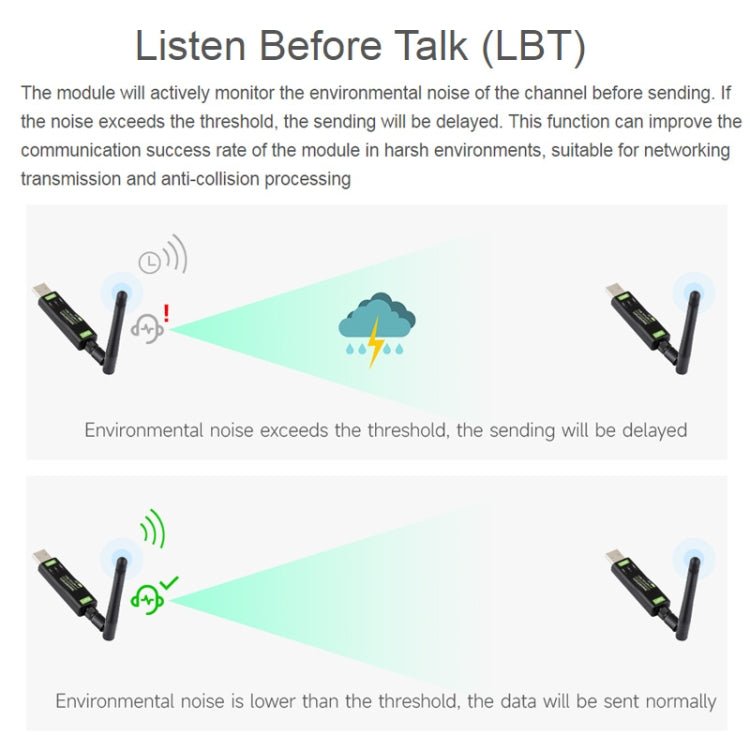

4. Support LBT transmission, RSSI output, AT command set setting
5. Support AES encrypted communication to ensure the security of data transmission
6. Support multi-level relay networking to increase the distance of wireless communication
7. Support PC configuration and firmware upgrade
8. Provide a complete supporting manual
Shape parameters:
-Interface type: USB Type A
-SMA-KE female socket: 6dBi omnidirectional antenna × 1
-Shell: ABS shell
- Dimensions: 56.40 × 18.40 × 12.52mm
Wireless parameters:
- Frequency band: Sub-GHz (410~510MHz, 850~930MHz)
- Signal modulation: LoRa
-Encryption type: AES128
- Transmitting power: +22dBm Max
-Receiving sensitivity: -148dBm
Serial parameters:
- Baud rate: 1200 ~ 115200bps
- Parity bit: none, odd parity, even parity
-Data bits: 8 ~ 9 bits
- flow control: N/A
Environmental requirements:
- Operating temperature: TCXO version 0 ~ 85 degrees Celsius, XTAL version: 0 ~ 50 degrees Celsius
- Humidity range: 5% ~ 95% relative humidity
Specification:
| Package Weight |
|
A closer look
1. This product is a wireless data transmission terminal based on the USB interface of the SX1262 solution. Using LoRa modulation and demodulation technology, it has the characteristics of strong anti-interference and long-distance communication, and the communication distance can reach 5KM. It supports point-to-point, point-to-multiple, relay networking, AES encryption and other communication methods.
It is small in size and easy to install. It is suitable for standard or non-standard user protocol wireless data transmission and equipment control of industrial control.2. Use SX1262 solution, with -148dBm receiving sensitivity and 22dBm transmitting power3. Support preamble detection, with CRC, automatic subpacket, 960 byte cache function4.
Support LBT transmission, RSSI output, AT command set setting5. Support AES encrypted communication to ensure the security of data transmission6. Support multi-level relay networking to increase the distance of wireless communication7. Support PC configuration and firmware upgrade8. Provide a complete supporting manualShape parameters:-Interface type: USB Type A-SMA-KE female socket: 6dBi omnidirectional antenna × 1-Shell: ABS shell- Dimensions: 56.40 × 18.40 × 12.52mmWireless parameters:- Frequency band: Sub-GHz (410~510MHz, 850~930MHz)- Signal modulation: LoRa-Encryption type: AES128- Transmitting power: +22dBm Max-Receiving sensitivity: -148dBmSerial parameters:- Baud rate: 1200 ~ 115200bps- Parity bit: none, odd parity, even parity-Data bits: 8 ~ 9 bits- flow control: N/AEnvironmental requirements:- Operating temperature: TCXO version 0 ~ 85 degrees Celsius, XTAL version: 0 ~ 50 degrees Celsius- Humidity range: 5% ~ 95% relative humiditySpecification: Package Weight One Package Weight 0.10kgs / 0.23lb One Package Size 12cm * 8cm * 5cm / 4.72inch * 3.15inch * 1.97inch Qty per Carton 288 Carton Weight 30.00kgs / 66.14lb Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch Loading Container 20GP: 177 cartons * 288 pcs = 50976 pcs40HQ: 412 cartons * 288 pcs = 118656 pcs.
