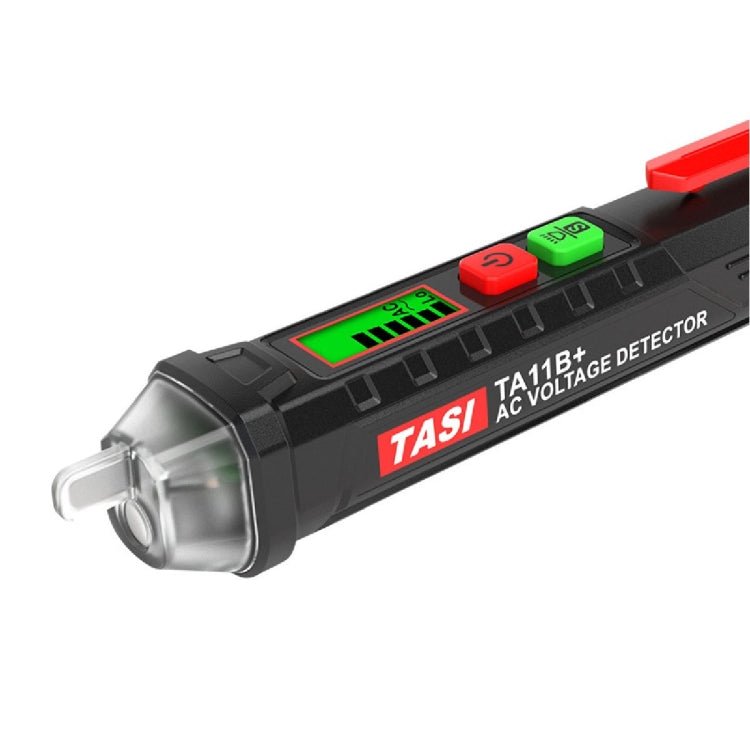

TASI Electrician Dedicated Multi-function Intelligent Induction Test Pencil, Model:11B+ Test Pencil
£18.19
Product Information:

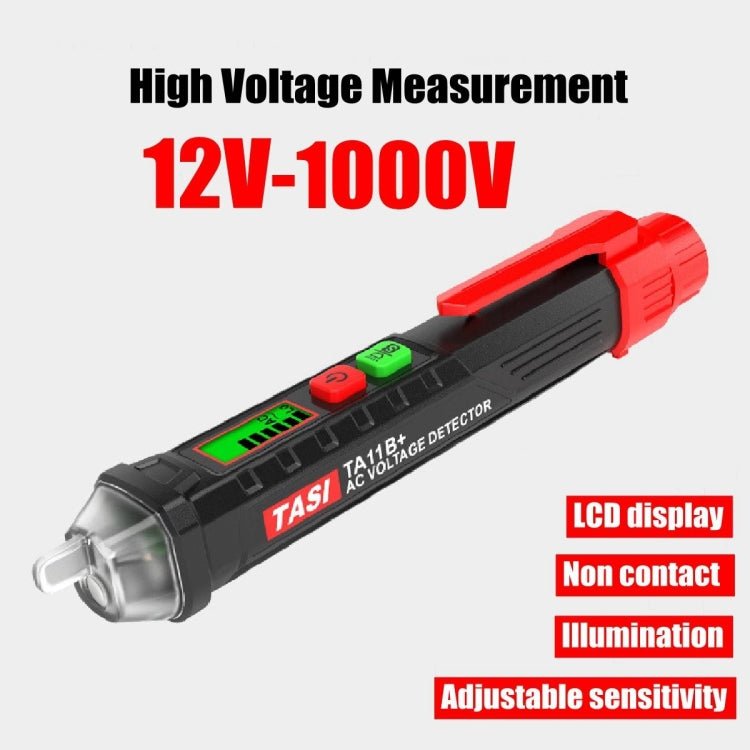

1. AC voltage: 12V~ 1000VAC
2. Frequency: 50Hz/60Hz
.3 alarm mode: sound / lighting / analog strip
4. Display: LCD display
5. Probe shape: flat
6. Fire and Neutral: Sound / Light / LCD Analog Bar Tips
7.Automatic shutdown: no induction signal for about 3 minutes or automatic shutdown without any operation
8. Safety level: CAT.III 1000V / CAT.IV 600V; CE

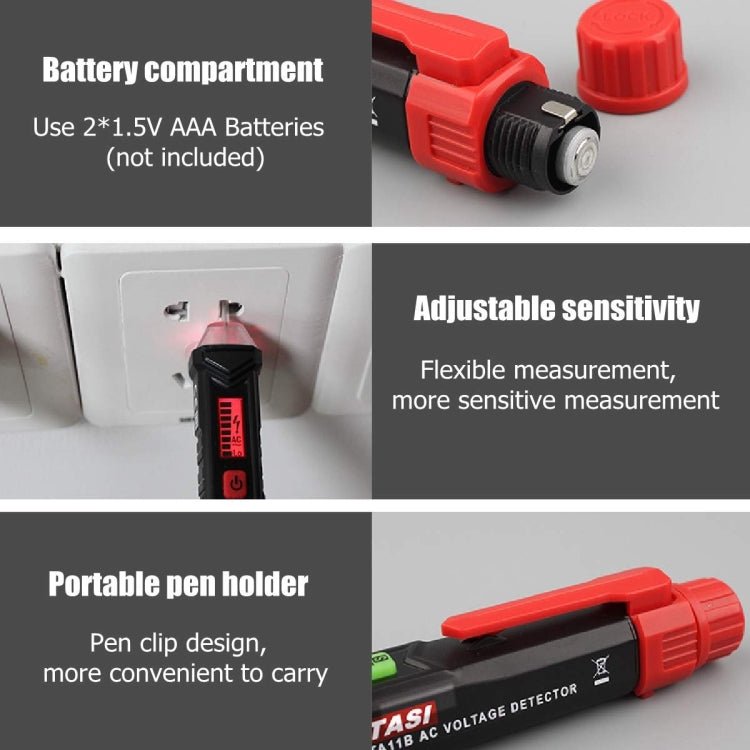

9. Power: 2 section 7 (AAA) battery
10. Product size: 159* 21* 20mm
11. Product weight: 45g
How to find a breakpoint:
1. Connect one of the wires to the live wire and connect the other wires to zero or ground to form a loop.
2. Open the test pen and measure from the cable to the live line in the opposite direction.
3. When measuring a normal cable, the battery indicator lights up red and a beep sounds. When the test pens light is off and there is no sound, the position is the breakpoint position.
Specification:
