Waveshare 0.96 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(D White)

Waveshare 0.96 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(D White)

1. Narrow bezel, small size, and equipped with level conversion circuit2. Four-wire SPI and I2C interface, good compatibility and fast transmission speed3. Provide supporting information manual (Raspberry Pi/Arduino/STM32 sample program)4....
Seller : Vitrax
SKU: TBD0414480301B
Availability: Pre-order
£17.32
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Visa

Money-Back Guarantee

Shop with confidence – satisfaction guaranteed.

Hassle-Free Returns

Easy returns with full customer support.

Free Shipping

Free delivery on eligible orders across the UK.
Waveshare 0.96 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(D White) - British D'sire
Waveshare 0.96 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication(D White)
£17.32

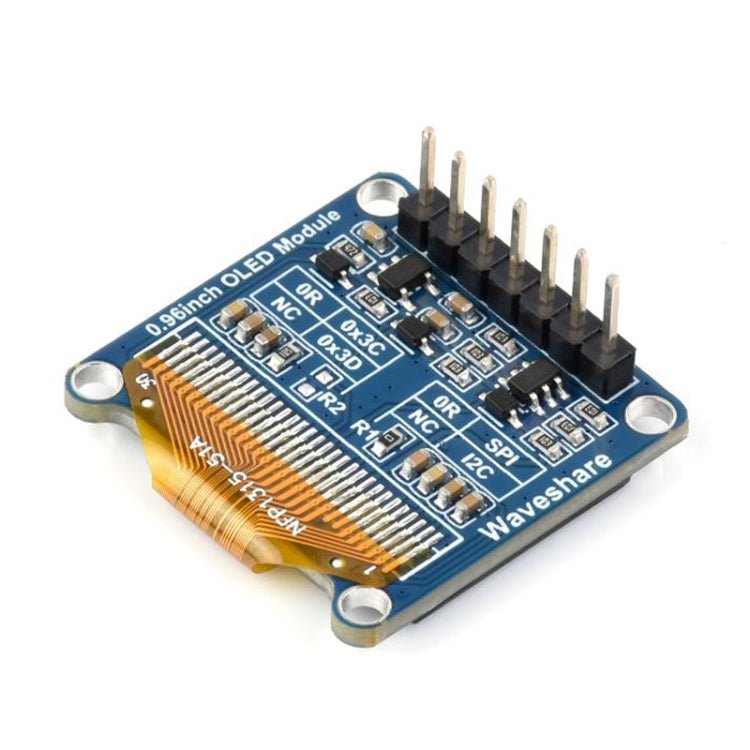

1. Narrow bezel, small size, and equipped with level conversion circuit

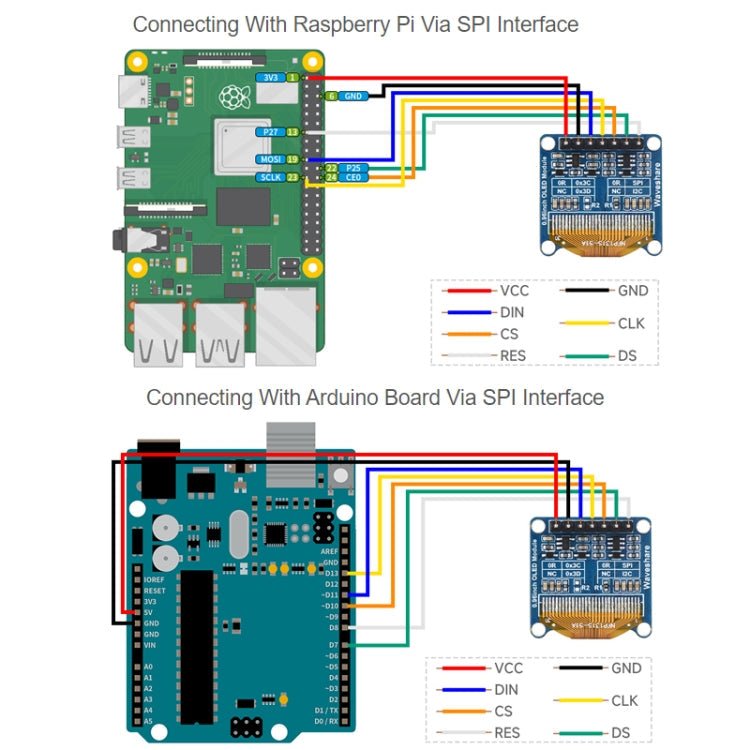

2. Four-wire SPI and I2C interface, good compatibility and fast transmission speed
3. Provide supporting information manual (Raspberry Pi/Arduino/STM32 sample program)
4. Working voltage: 3.3V / 5V
5. Resolution: 128×64 pixels
6. Pixel size: 0.15 × 0.15mm
7. Communication interface: 4-wire SPI/I2C
8. Display panel: OLED
9. Driver chip: SSD1315
10. Display size: 0.96 inches

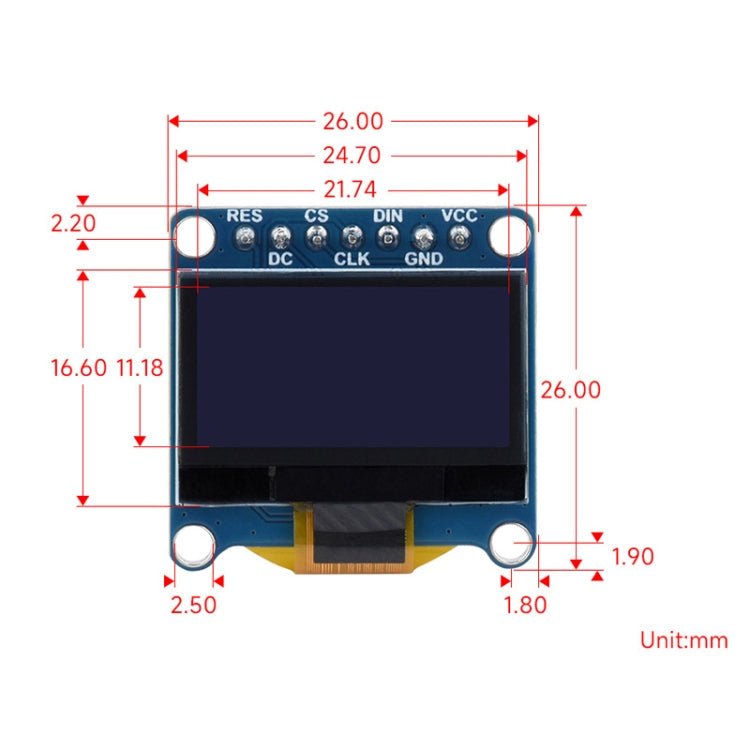

11. Size: approx. 2.6 x 2.6cm


Specification:
Package Weight
One Package Weight 0.02kgs / 0.05lb
One Package Size 8cm * 6cm * 3cm / 3.15inch * 2.36inch * 1.18inch
Qty per Carton 500
Carton Weight 12.00kgs / 26.46lb
Carton Size 30cm * 50cm * 40cm / 11.81inch * 19.69inch * 15.75inch
Loading Container 20GP: 444 cartons * 500 pcs = 222000 pcs
40HQ: 1031 cartons * 500 pcs = 515500 pcs
