Waveshare BME680 Environmental Sensor Supports Temperature / Humidity / Barometric Pressure / Gas Detection
£23.89

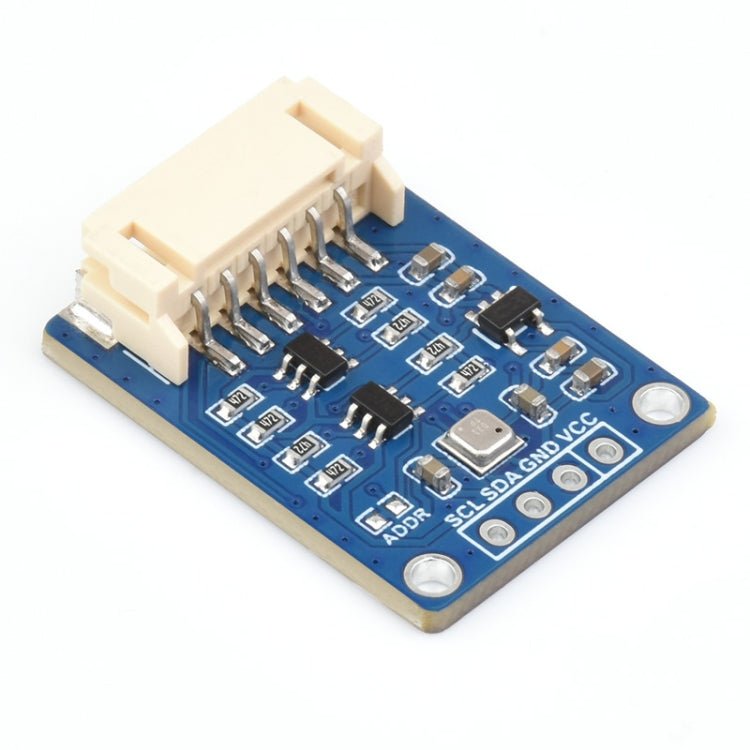

1. Onboard BME68X sensor to measure temperature, humidity, barometric pressure and gas
2. Support I2C interface communication, can set I2C address, support I2C bus cascading
3. Support SPI interface communication, the default is I2C interface, SPI can be enabled through CS chip selection
4. On-board level conversion circuit, compatible with 3.3V/5V working level
5. Provide complete supporting information manuals (RaspberryPi/Pico/Arduino/ESP32 sample programs and user manuals, etc.)
Parameter:
1. Function: BME680 can detect atmospheric pressure, ambient temperature, relative humidity, VOC gas change detection (combined with Bosch software package, can calculate IAQ air quality coefficient), BME688 can detect atmospheric pressure, ambient temperature, relative humidity, VOC and VSC Gas change detection (combined with Boschs software package, which can calculate IAQ air quality coefficient and integrate AI function)
2. Communication interface: I2C and SPI
3. Temperature measurement range: -40~85 degrees Celsius
4. Temperature measurement accuracy: BME680: +/-1.0 degrees Celsius (0~65 degrees Celsius), BME688: +/-0.5 degrees Celsius (0~65 degrees Celsius)
5. Humidity measurement range: 0~100%RH
6. Humidity measurement accuracy: +/-3%RH
7. Air pressure measurement range: 300~1100 hPa
8. Air pressure measurement accuracy: +/-0.6hPa (0~65 degrees Celsius)
9. Gas measurement: BME680: VOC gas change detection, BME688: VOC and VSC gas change detection

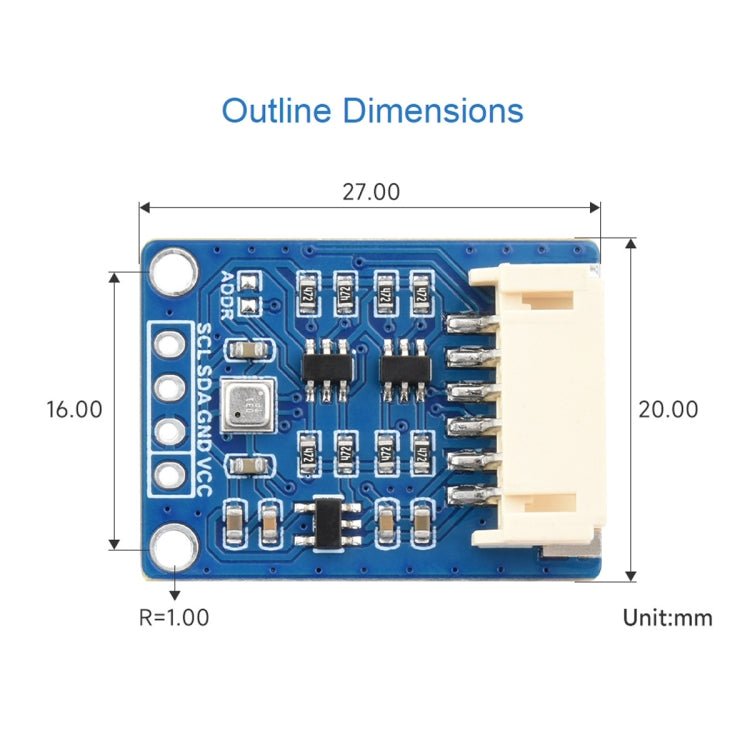

10. Product size: 27 × 20mm
Packing list:
-Environment sensor x 1
-PH2.0 6PIN cable 20cm × 1
Specification:
| Package Weight |
|
A closer look
1. Onboard BME68X sensor to measure temperature, humidity, barometric pressure and gas2. Support I2C interface communication, can set I2C address, support I2C bus cascading3. Support SPI interface communication, the default is I2C interface, SPI can be enabled through CS chip selection4. On-board level conversion circuit, compatible with 3.3V/5V working level5.
Provide complete supporting information manuals (RaspberryPi/Pico/Arduino/ESP32 sample programs and user manuals, etc.)Parameter:1. Function: BME680 can detect atmospheric pressure, ambient temperature, relative humidity, VOC gas change detection (combined with Bosch software package, can calculate IAQ air quality coefficient), BME688 can detect atmospheric pressure, ambient temperature, relative humidity, VOC and VSC Gas change detection (combined with Boschs software package, which can calculate IAQ air quality coefficient and integrate AI function)2. Communication interface: I2C and SPI3. Temperature measurement range: -40~85 degrees Celsius4. Temperature measurement accuracy: BME680: +/-1.0 degrees Celsius (0~65 degrees Celsius), BME688: +/-0.5 degrees Celsius (0~65 degrees Celsius)5.
Humidity measurement range: 0~100%RH6. Humidity measurement accuracy: +/-3%RH7. Air pressure measurement range: 300~1100 hPa8. Air pressure measurement accuracy: +/-0.6hPa (0~65 degrees Celsius)9. Gas measurement: BME680: VOC gas change detection, BME688: VOC and VSC gas change detection10. Product size: 27 × 20mmPacking list:-Environment sensor x 1-PH2.0 6PIN cable 20cm × 1Specification: Package Weight One Package Weight 0.08kgs / 0.19lb One Package Size 8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch Qty per Carton 356 Carton Weight 30.00kgs / 66.14lb Carton Size 56cm * 35cm * 21cm / 22.05inch * 13.78inch * 8.27inch Loading Container 20GP: 647 cartons * 356 pcs = 230332 pcs40HQ: 1504 cartons * 356 pcs = 535424 pcs.
Product details
Specifications
| Brand | Vitrax |
|---|---|
| Size | 27 × 20mmPacking list:-Environment sensor x 1-PH2.0 6PIN cable 20cm × 1Specification: Package Weight One Package Weight 0.08kgs / 0.19lb One Package Size 8cm * 5cm * 3cm / 3.15inch * 1.97inch * 1.18inch Qty per Carton 356 Carton Weight 30.00kgs / 66.14lb Carton Size 56cm * 35cm * 21cm / 22.05inch * 13.78inch * 827inch Loading Container 20GP: 647 cartons * 356 pcs = 230332 pcs40HQ: 1504 cartons * 356 pcs = 535424 pcs |
| Weight | 0.19 lb |
| Product code | TBD0426278701 |
