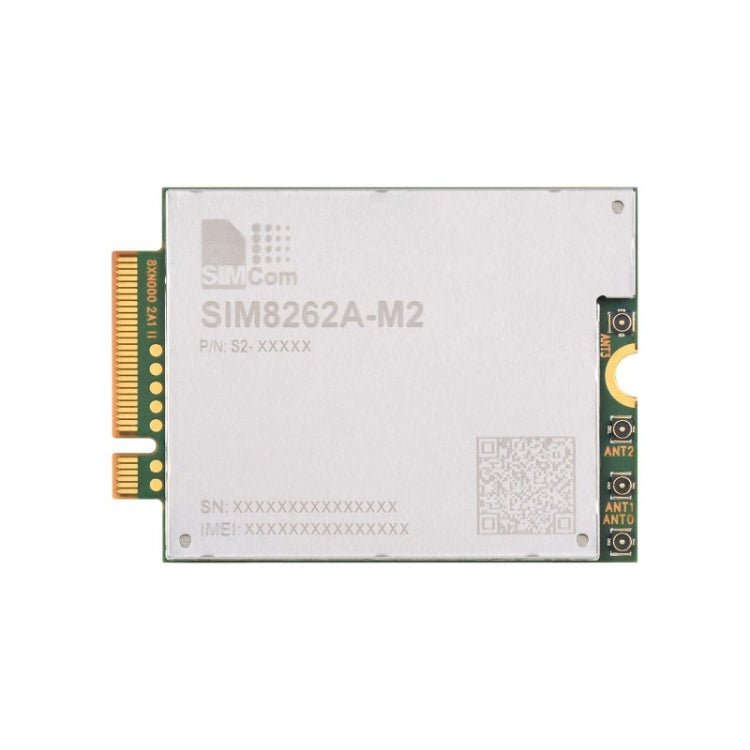

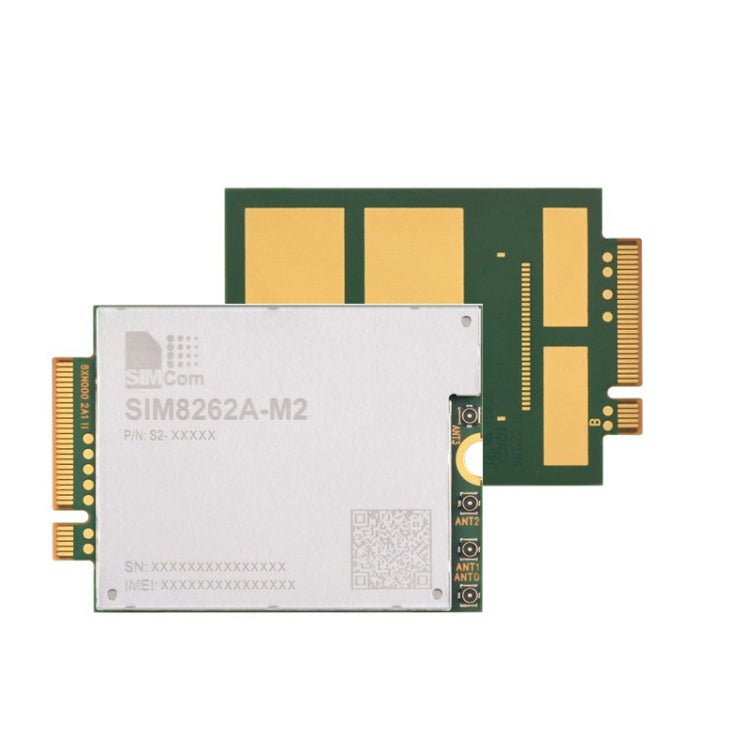

Waveshare SIM8262A-M2 SIMCom Original 5G Module, Interface M.2
£238.30
1. SIM8262A-M2 SIMCom 5G module Sub-6G module based on Qualcomm Snapdragon X62 adopts 3GPP 5G Release 16
2. SIM8262A-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module, supports R16 5G NSA/SA, up to 2.4Gbps data transmission.
3. It has powerful expansion capabilities and rich interfaces, including PCle, USB3.1, GPIO, etc. This module provides great flexibility and ease of integration for customers applications
4. SIM8262A-M2 adopts M.2 shape, AT command is compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes customer investment and shortens time to market
5. It is designed for applications requiring high-throughput data communication under various radio propagation conditions. Due to the unique combination of performance, safety and flexibility, this module is well suited for many applications
6. Standard M.2 interface
7. High throughput data communication
8. The AT command of SIM8262A-M2 is compatible with SIM7912G/SIM8200X-M2 series modules
Specification:
1. 5G standard: 3GPP R16
2. Chip: Qualcomm Snapdragon X62
3. Sub-6G: n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79
4. LTE-FDD: B1, B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71
5. LTE-TDD: В38, B41, B42, B43, B46, B48
6. WCDMA: B1, B2, B4, B5, B8
7. GNSS: GPS, GLONASS, Beidou, Galileo and QZSS
8. Operating temperature: -30 to 70 degrees Celsius
9. SIM card: 1.8v/2.95v
10. Antenna: for 3G / 4G / 5G / GNSS; 4 x IPEX-4 connectors
11. Power supply: 3.135-4.4v
12. Interface: M.2
13. Applicable areas: CPE, intelligent gateway, drone, live broadcast, telemedicine, intelligent security, etc.

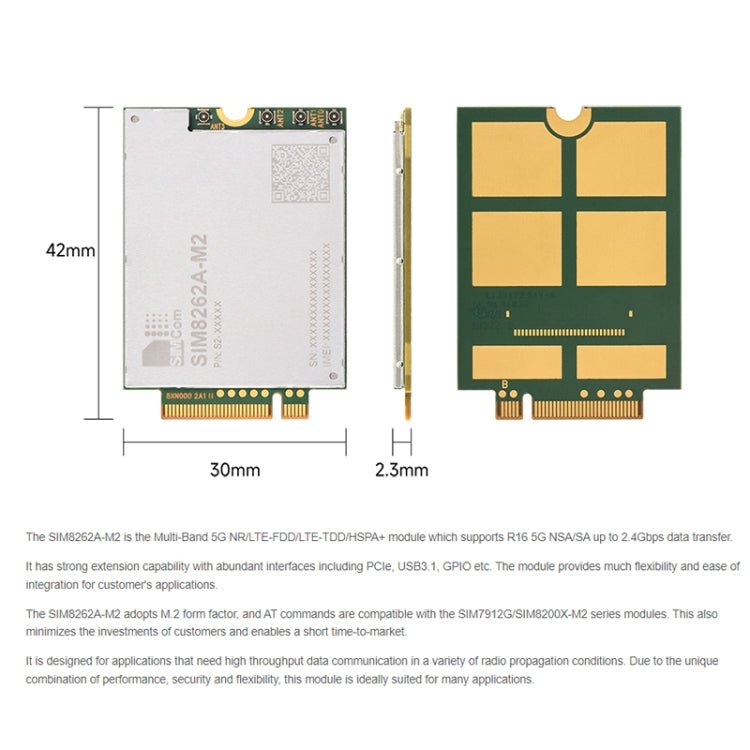

14. Dimensions: 42 x 30 x 2.3mm
Data rate:
1. Sub-6G: 2.4 Gbps (DL) / 500Mbps (UL)
2. LTE1: Gbps (DL) / 200Mbps (UL)
3. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)
Software features:
1. Operating system: Windows / Linux / Android
2. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
3. Dialing: RNDIS, NDIS, PPP, MBIM
4. SMS support: MT, MO, CB, Text, PDU
5. Firmware upgrade: support firmware upgrade via USB port
Specification:
| Package Weight |
|
A closer look
1. SIM8262A-M2 SIMCom 5G module Sub-6G module based on Qualcomm Snapdragon X62 adopts 3GPP 5G Release 162. SIM8262A-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module, supports R16 5G NSA/SA, up to 2.4Gbps data transmission.3. It has powerful expansion capabilities and rich interfaces, including PCle, USB3.1, GPIO, etc. This module provides great flexibility and ease of integration for customers applications4. SIM8262A-M2 adopts M.2 shape, AT command is compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes customer investment and shortens time to market5. It is designed for applications requiring high-throughput data communication under various radio propagation conditions. Due to the unique combination of performance, safety and flexibility, this module is well suited for many applications6. Standard M.2 interface7. High throughput data communication8.
The AT command of SIM8262A-M2 is compatible with SIM7912G/SIM8200X-M2 series modulesSpecification:1. 5G standard: 3GPP R162. Chip: Qualcomm Snapdragon X623. Sub-6G: n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n794. LTE-FDD: B1, B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B715. LTE-TDD: В38, B41, B42, B43, B46, B486. WCDMA: B1, B2, B4, B5, B87. GNSS: GPS, GLONASS, Beidou, Galileo and QZSS8. Operating temperature: -30 to 70 degrees Celsius9. SIM card: 1.8v/2.95v10. Antenna: for 3G / 4G / 5G / GNSS; 4 x IPEX-4 connectors11.
Power supply: 3.135-4.4v12. Interface: M.213. Applicable areas: CPE, intelligent gateway, drone, live broadcast, telemedicine, intelligent security, etc.14. Dimensions: 42 x 30 x 2.3mmData rate:1. Sub-6G: 2.4 Gbps (DL) / 500Mbps (UL)2. LTE1: Gbps (DL) / 200Mbps (UL)3. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)Software features:1. Operating system: Windows / Linux / Android2. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.03. Dialing: RNDIS, NDIS, PPP, MBIM4. SMS support: MT, MO, CB, Text, PDU5. Firmware upgrade: support firmware upgrade via USB portSpecification: Package Weight One Package Weight 0.08kgs / 0.19lb One Package Size 8cm * 4cm * 4cm / 3.15inch * 1.57inch * 1.57inch Qty per Carton 356 Carton Weight 30.00kgs / 66.14lb Carton Size 56cm * 28cm * 28cm / 22.05inch * 11.02inch * 11.02inch Loading Container 20GP: 607 cartons * 356 pcs = 216092 pcs40HQ: 1410 cartons * 356 pcs = 501960 pcs.
Product details
Specifications
| Brand | Vitrax |
|---|---|
| Weight | 0.19 lb |
| Product code | TBD04201934 |
