Rytons 9x9 Acoustic AirLiner Set with Hit & Miss Ventilator
£239.99
In stock
- Maximum background ventilation through a single opening. The 9×9 provides the highest equivalent area in the AirLiner...
- Replacement of existing non-acoustic ventilators in 9×9 openings. Fits standard 9×9 inch openings. The telescopic sle...
- Hit & miss control — ventilation management.
- 38 dB — BRE tested to BS EN 13141-1:2004. The 9×9 achieves 38 dB sound reduction open or closed. The acoustic perform...
Couldn't load pickup availability
Tracked UK deliverySent by Advanced Acoustics with Royal Mail or Amazon, with tracking.
Money-Back Guarantee
Shop with confidence – satisfaction guaranteed.
Hassle-Free Returns
Easy returns with full customer support.
Free Shipping
Free delivery on eligible orders across the UK.
Rytons 9x9 Acoustic AirLiner Set with Hit & Miss Ventilator
Regular price
£239.99 GBP
Regular price
Sale price
£239.99 GBP
Unit price
per
Rytons 9x9 Acoustic AirLiner Set with Hit & Miss Ventilator
£239.99

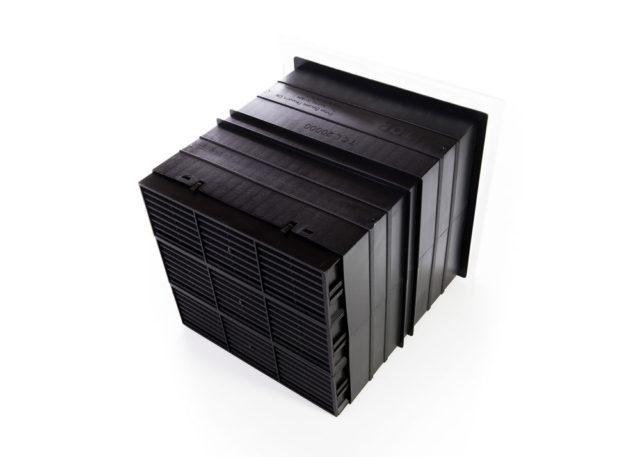

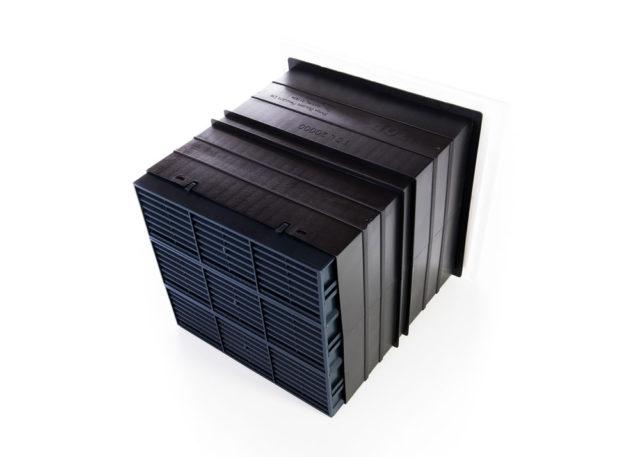

Rytons 9×9 Acoustic AirLiner Set with Hit & Miss Ventilator | Telescopic Cavity Liner | 12,800mm²
The Rytons 9×9 Acoustic AirLiner Set is the largest format in the AirLiner range, providing the highest equivalent area and suitable for applications where maximum background ventilation through a single opening is required. The 9×9 format provides 12,800mm² equivalent area — more than double the 9×3 and approximately 30% more than the 9×6 — making it appropriate for large rooms, open-plan spaces, or applications where multiple smaller vents would otherwise be required. Acoustic performance is 38 dB open or closed, tested by BRE to BS EN 13141-1:2004. Manufactured from UV-stabilised polypropylene and high-impact polystyrene. Sleeve: 220mm W × 207mm H, extending 250mm to 404mm. Internal grille: 271mm L × 247mm H. Available in seven colours.
Jump to: Applications · Product Benefits · Installation · Technical Details
Applications
- Maximum background ventilation through a single opening. The 9×9 provides the highest equivalent area in the AirLiner range at 12,800mm², making it appropriate for large rooms or open-plan spaces where the ventilation requirement cannot be met by a single 9×3 or 9×6 unit. Install through a 9×9 inch (229×229mm) ventilator brick opening.
- Replacement of existing non-acoustic ventilators in 9×9 openings. Fits standard 9×9 inch openings. The telescopic sleeve adjusts from 250mm to 404mm.
- Hit & miss control — ventilation management.
Product Benefits
- 38 dB — BRE tested to BS EN 13141-1:2004. The 9×9 achieves 38 dB sound reduction open or closed. The acoustic performance per unit area is consistent with the smaller AirLiner formats — the larger opening size does not reduce the dB rating.
- 12,800mm² equivalent area — maximum ventilation in the AirLiner range. The largest equivalent area in the range, providing background ventilation for large rooms or open-plan spaces from a single vent opening.
- Telescopic sleeve — adjusts 250mm to 404mm.
- Hit & miss ventilator — occupant-controlled airflow.
- UV-stabilised polypropylene and high-impact polystyrene.
- Seven colour options — Terracotta, Buff/Sand, Blue/Black, Grey, White, Brown, Black.
Installation

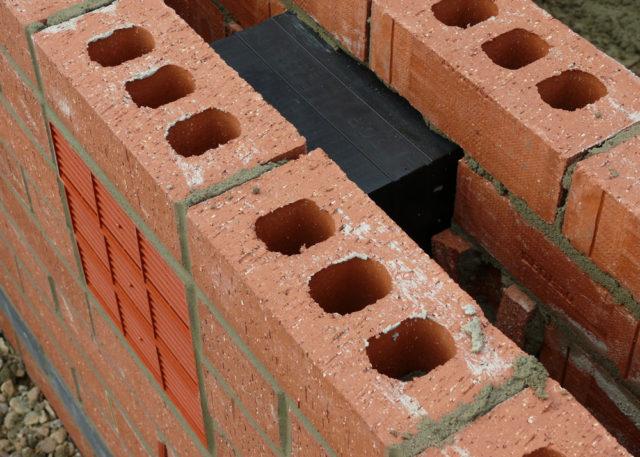

The 9×9 AirLiner Set fits a standard 9×9 inch ventilator brick opening (229×229mm). Insert the telescopic sleeve through the wall opening, adjusting the length to suit the wall thickness (250–404mm). Fix the sleeve in position. Fit the internal hit & miss grille to the internal face and check that the mechanism operates freely. Check that the external grille is correctly seated and clear of mortar or debris.
The Technical Details
| Product Name | Rytons 9×9 Acoustic AirLiner Set with Hit & Miss Ventilator |
| Acoustic Performance | 38 dB (open or closed) |
| Equivalent Area | 12,800mm² |
| Testing Standard | BS EN 13141-1:2004 (BRE tested) |
| Sleeve Dimensions | 220mm W × 207mm H |
| Sleeve Length Range | 250mm to 404mm (telescopic) |
| Internal Grille | 271mm L × 247mm H |
| Material | UV-stabilised polypropylene and high-impact polystyrene |
| Colours | Terracotta, Buff/Sand, Blue/Black, Grey, White, Brown, Black |
| Ventilator Type | Hit & Miss |
A closer look
Rytons 9×9 Acoustic AirLiner Set with Hit & Miss Ventilator | Telescopic Cavity Liner | 12,800mm²The Rytons 9×9 Acoustic AirLiner Set is the largest format in the AirLiner range, providing the highest equivalent area and suitable for applications where maximum background ventilation through a single opening is required. The 9×9 format provides 12,800mm² equivalent area — more than double the 9×3 and approximately 30% more than the 9×6 — making it appropriate for large rooms, open-plan spaces, or applications where multiple smaller vents would otherwise be required. Acoustic performance is 38 dB open or closed, tested by BRE to BS EN 13141-1:2004. Manufactured from UV-stabilised polypropylene and high-impact polystyrene. Sleeve: 220mm W × 207mm H, extending 250mm to 404mm. Internal grille: 271mm L × 247mm H.
Available in seven colours.Jump to: Applications · Product Benefits · Installation · Technical DetailsApplications Maximum background ventilation through a single opening. The 9×9 provides the highest equivalent area in the AirLiner range at 12,800mm², making it appropriate for large rooms or open-plan spaces where the ventilation requirement cannot be met by a single 9×3 or 9×6 unit. Install through a 9×9 inch (229×229mm) ventilator brick opening. Replacement of existing non-acoustic ventilators in 9×9 openings. Fits standard 9×9 inch openings. The telescopic sleeve adjusts from 250mm to 404mm. Hit & miss control — ventilation management. Product Benefits 38 dB — BRE tested to BS EN 13141-1:2004. The 9×9 achieves 38 dB sound reduction open or closed.
The acoustic performance per unit area is consistent with the smaller AirLiner formats — the larger opening size does not reduce the dB rating. 12,800mm² equivalent area — maximum ventilation in the AirLiner range. The largest equivalent area in the range, providing background ventilation for large rooms or open-plan spaces from a single vent opening. Telescopic sleeve — adjusts 250mm to 404mm. Hit & miss ventilator — occupant-controlled airflow. UV-stabilised polypropylene and high-impact polystyrene. Seven colour options — Terracotta, Buff/Sand, Blue/Black, Grey, White, Brown, Black. InstallationThe 9×9 AirLiner Set fits a standard 9×9 inch ventilator brick opening (229×229mm). Insert the telescopic sleeve through the wall opening, adjusting the length to suit the wall thickness (250–404mm). Fix the sleeve in position. Fit the internal hit & miss grille to the internal face and check that the mechanism operates freely. Check that the external grille is correctly seated and clear of mortar or debris.The Technical Details Product Name Rytons 9×9 Acoustic AirLiner Set with Hit & Miss Ventilator Acoustic Performance 38 dB (open or closed) Equivalent Area 12,800mm² Testing Standard BS EN 13141-1:2004 (BRE tested) Sleeve Dimensions 220mm W × 207mm H Sleeve Length Range 250mm to 404mm (telescopic) Internal Grille 271mm L × 247mm H Material UV-stabilised polypropylene and high-impact polystyrene Colours Terracotta, Buff/Sand, Blue/Black, Grey, White, Brown, Black Ventilator Type Hit & Miss.
Product details
Specifications
| Brand | Advanced Acoustics |
|---|---|
| Product type | Acoustic Vent |
| Weight | 2.2 lb |
| Product code | TAL9H&MT |
